Getting Started

Custom Email Subscriptions

Create custom email subscriptions

Overview

Email subscriptions, similarly to webhooks, are a method of communicating a selected event occurred in Fynapse.

Such subscriptions for email notifications can be configured for:

  • Approval Workflow events
  • Ingestion events
  • Extraction events

Email notifications for approval workflows are exclusively managed on the Email Notifications screen.

You can create custom email subscriptions for different Event Types using REST API endpoints.

Custom email notifications for ingestion and extraction events appear on the Email Notifications screen, where they can be enabled or disabled. However, they are created and can also be managed via REST API endpoints covered in this article.

Email subscriptions are released under a feature flag. Please note that when you enable the feature flag, it covers both the default and custom email subscriptions.

Email subscriptions are not available for balance.extracted event.

Email Subscriptions REST API Endpoints

MethodPathPurpose
GET/email-subscriptionsReturns a paginated list of existing email subscriptions.
GET/email-subscriptions/{id}Returns the details of a given email subscription identified by ID.
POST/email-subscriptionsCreates a new email subscription.
DELETE/email-subscriptions/{id}Deletes an email subscription.
POST/email-subscriptions/{id}/activate | /deactivateEnables/disables a given email subscription identified by ID.
POST/email-subscriptions/by-name/{name}/activate | /deactivateEnables/disables a given email subscription identified by name.
PATCH/email-subscriptions/{id}Partially updates an email subscription. Only fields present in the body are changed; an absent field or explicit null leaves the value untouched.

Security Permissions

Working with email subscriptions REST API endpoints requires a user with relevant permissions granted:

  • GET calls require email_subscription_read permission
  • POST, PATCH and DELETE calls require email_subscription_edit permission

Template for a Custom Email Subscription

To create a custom email subscription you need to include the following subscription fields in the payload for the email-subscriptions endpoint:

FieldNotes
nameUnique name of the subscription.
eventTypes[]At least one; validated against the known event-type set. Balance events (balance.extracted) are rejected — email is not permitted for balances.
subjectEmail subject line; supports {{placeholder}} tokens filled from the event payload.
previewTextOptional inbox-preview text; also supports placeholders.
emailTemplateRequired HTML fragment (title / body / CTA). The doctype, <head>, wrapper, header logo and footer are added by the sender — subscriptions never store the full HTML document.
recipients[]Required, non-empty. Each entry is either a literal address or a token (see next).
descriptionFree text for admin UIs.

Different groups of Event Types have different data fields. All Event Types of one subscription have to belong to one group, e.g. you cannot create a subscription with ingestion and extraction events.

Sample Payload

Sample 1

{
  "name": "Ingestion successful",
  "eventTypes": [
    "ingestion.processing.succeeded"
  ],
  "subject": "File {{ingestionId}} ingested",
  "previewText": "File was successfully ingested",
  "emailTemplate": "<p>Ingestion successful,</p><br /><p>File: {{ingestionId}} was ingested successfully</p><p>Completed on: {{finishedOn}}</p>",
  "recipients": [
    "ops@example.com"
  ],
  "description": "Notification email informing file ingestion was successful."
}

Recipient Token Grammar

Each entry in recipients[] is one of:

  • Literal — e.g. ops@example.com. Sent as-is.
  • User — {{u::<payload-field>}}, e.g. {{u::requestor}}. The field’s value (user id/username from the payload) is resolved to an email address via the identity service at send time.
  • Group — {{g::<payload-field>}}, e.g. {{g::approverGroup}}. The field’s value (group name) is resolved and expanded to every member’s address at send time.

Delivery Behaviour

  • A placeholder with a present but null field renders as empty text.
  • A placeholder or recipient token with a field missing from the event stops the whole email. The delivery ends as dead letter .
  • An unknown user or group also stops the email.
  • A recipient token with a null field adds no recipient. Users and group members without an email address are skipped.
  • When no recipient is left, nothing is sent and the delivery ends as cancelled.

Rendering

  • The contents of the payload are wrapped in a graphic design provided by Fynapse.
  • Every email is auto-converted to a plain-text alternative for clients that don’t render HTML.
  • Transport: SMTP via SendGrid.
  • The default From address is no-reply@fynapse.aptitudecloud.com (env-dependent).

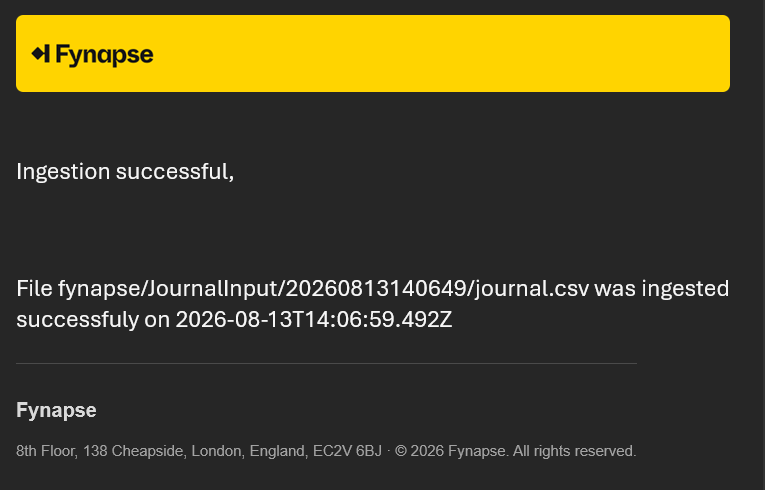

Sample Email

Example 1

Sample_notification2
